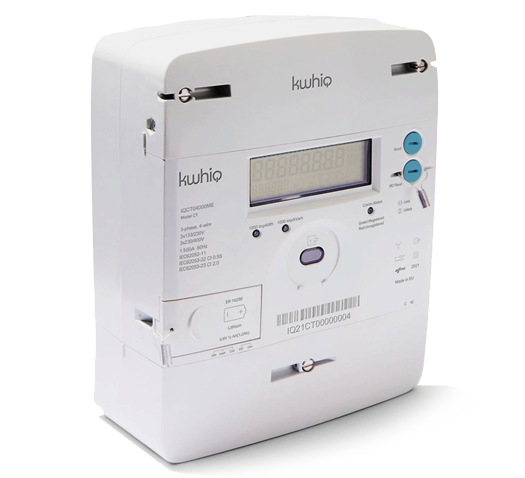

KwhiQ IQCT series (3 Phase Indirect Connected with Current Transformer)

Three phase CT operated meters which offers flexible time-of-use tariff metering and communications capabilities. Three-Phase CT operated meter has enhanced event detection facilities and supports interoperable DLMS communication protocol.

Seamless integration and flexibility are key factors in exploiting the full potential of the fast developing and diversified communication technologies. Three phase CT operated meter supports the DLMS/COSEM data collection protocol as a system integration interface. This ensures a standardized interface between the electricity meter and several data collection systems.

The 3-phased current transformer electricity meter are used for registration of electric energy.

The meter is fully electronic without movable parts. Thus, energy registration is not affected by shock or impact during transport and mounting. Furthermore, measurements are correct no matter the physical mounting direction. Energy is determined by simultaneously measuring voltage and current. The current is measured via current transformers.

The easily readable display scrolls automatically between readings, or readings can be changed manually by activating the left push button. The required display readings as well as their order are configurable.

In addition to being read from the display, data can be collected via optical output or from the module area. The unique module area also permits external changing of communication modules, the meter supports a wide range of communication like radio, NB-IoT, GSM, GPRS, 3G/4G, RS485, LoRa PRIME-PLC/G3-PLC.
